Overview

The PROSIXPIR is a wireless motion sensor that detects movement inside your home or business. If the battery becomes low, your alarm system will display a low battery alert. Replacing the battery is quick and can usually be done without a technician.


Before You Begin

Before replacing the battery, please call us at (718) 360-9191 so we can place your alarm system in Test Mode. This will help prevent unnecessary alarm signals from being sent while the battery is being replaced.


Where to Purchase the Battery

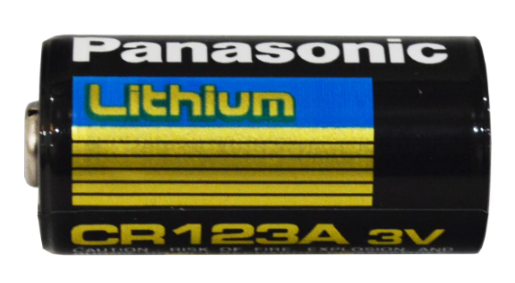

A CR123A 3V lithium battery is commonly available at:

  • Hardware stores
  • Home improvement stores
  • Electronics retailers
  • Online marketplaces such as Amazon

We recommend using a quality lithium battery from a reputable manufacturer.


What You'll Need

  • One new CR123A 3V lithium battery.
  • Small flat-head screwdriver (if needed)

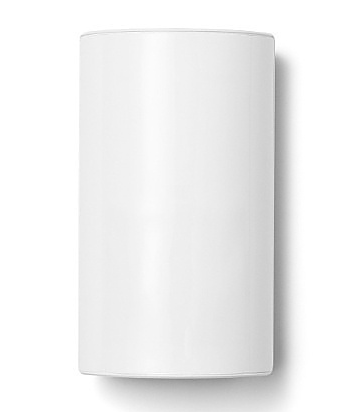

Step 1 – Locate the Motion Sensor

The motion sensor is typically installed:

  • On a wall
  • In a corner of the room
  • Approximately 7–8 feet above the floor

Step 2 – Remove the Cover

  1. Locate the release tab at the bottom of the sensor.
  2. Gently press the tab.
  3. Carefully pull the front cover away from the back plate.

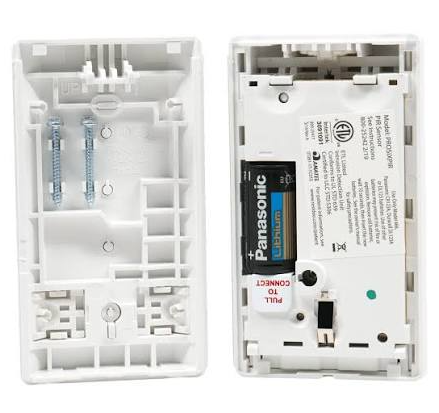

Step 3 – Remove the Old Battery

  1. Carefully remove the old battery.
  2. Wait approximately 10 seconds before installing the new battery.

Step 4 – Install the New Battery

  1. Insert the new CR123A 3V lithium battery.
  2. Ensure the positive (+) and negative (-) ends match the markings inside the sensor.
  3. Do not force the battery into place.

Step 5 – Reinstall the Cover

Snap the front cover back onto the sensor until it clicks securely into place.

Step 6 – Verify the Sensor

Allow several minutes for the sensor to reconnect to the alarm system.

Once you've completed the battery replacement, please let us know so we can verify that the sensor is communicating properly.

Troubleshooting

If the low battery message does not clear after 10–15 minutes:

  • Confirm the battery is installed correctly.
  • Verify that you're using a new CR123A 3V lithium battery.
  • Ensure the sensor cover is fully closed.
  • Contact Structured Progress for assistance.


For reference, see the video below.

https://www.youtube.com/watch?v=lAEGY3M8rVA
